[MERGED] Motor jaman jebot, penjajahan, baheula dan lain lain mangkir disini

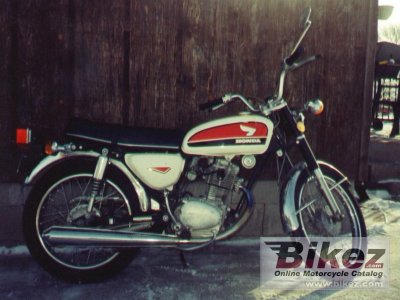

HONDA CB 100 1973



spesifikasi
Model: Honda CB 100
Year: 1973
Category: Scooter

Engine and transmission
Displacement: 99.00 ccm (6.04 cubic inches)
Engine type: Single cylinder, four-stroke
Power: 11.50 HP (8.4 kW)) @ 10500 RPM
Top speed: 110.0 km/h (68.4 mph)
Compression: 9.5:1
Bore x stroke: 50.5 x 49.5 mm (2.0 x 1.9 inches)
Valves per cylinder: 2
Fuel control: OHC
Cooling system: Air
Gearbox: 5-speed
Transmission type,
final drive: Chain

Chassis, suspension, brakes and wheels
Front tyre dimensions: 2.50-18
Rear tyre dimensions: 2.75-18
Front brakes: Expanding brake
Rear brakes: Expanding brake

Physical measures and capacities
Weight incl. oil, gas, etc: 92.0 kg (202.8 pounds)
Fuel capacity: 10.00 litres (2.64 gallons)

Yamaha RX King

image:

MESIN
Tipe Mesin : 2 stroke, Air Cooled
Diameter x Langkah : 58,0 x 50,0 mm
Volume Silinder : 132 cc
Perbandingan Kompresi : 6,9 : 1
Kopling : Manual, Basah, Multiplat
Susunan Silinder : Satu/Miring
Gigi Transmisi : 5 Kecepatan
Pola Pengoperasian Gigi : 1-N-2-3-4-5
Karburator : VM 26 x 1 MIKUNI
Kapasitas Oli Samping : 1 Liter
Baterai : GM 3-3B/12,3
Busi : BP 8HS-10
Sistem Pengapian : CDI
Sistem Pelumas : Autolube

PERFORMA
Dimensi PxLxT : 1970 x 735 x 1065 mm
Sistem Starter : Kick
Daya Maksimum : 18,5 PS/9.000 RPM
Torsi Maksimum : 1.54 KGF.M/8.000 RPM

SUSPENSI/BAN
Suspensi Depan : Teleskopik
Suspensi Belakang : Swing Arm
Ukuran Ban Depan : 2.75-18-4 PR
Ukuran Ban Belakang : 3.00-18-4 PR

CHASSIS
Berat Kosong : 100 kg
Tipe Rangka : Double Cradle
Kapasitas Tangki : 9,5 Liter
Jarak Sumbu Roda : 1245 mm
Jarak Terendah ke Tanah : 160 mm
Jarak Tempat Duduk : 770 mm

SISTEM PENGEREMAN
Rem Depan : Cakram Double Piston
Rem Belakang : Tromol

SUZUKI A100 1966

image:

SPECIFICATION

Engine type : 2 stroke, single cylinder
displacement : 98cc
gearbox : return, 4 speed
power : 9. hp/7500RPM
bore x stroke : 50 x 50
cooling system : air
fuel tank : 7.0 L
weight : 83KG
Front tyre dimensions: 2.50-18
Rear tyre dimensions: 2.75-18
Front brakes: Expanding brake
Rear brakes: Expanding brake

Kawasaki KZ200 (Binter Merzy]

image:

-200 cc
-4Stroke, 1 Cylinder
-Single Over Head
-Camshaft
-5-Speed Return Shift
Maximum Horsepower: 18 HP @8,000 rpm
-Spark Plug: NGK B7ES or ND W22ES-U
-Tire Size: 2.75-18 4PR(Front), 3.25-17 4PR (Rear)
-Color Fuel Tank: Cerulean Blue, Garnet Brown
-Front Fender: Chrome
-Engine No.: KZ200AE000001-
-Frame No.: KZ200A-000004 -
-Parts Catalogue No.: 99997-683 plus 99997-683-01R, (G) 99997-683-50S, (E) 99997-687
-Owner's Manual No.: 99932-001-00, (E) 99983-052-00
-Shop Manual No.: 99931-541-00
-Remarks: Four-stroke, single-cylinder commuter, with mechanical front disc brake, safety side stand, and electric starter. Steering lock is combined with ignition switch.

HONDA NOVA DASH 2001



ENGINE TYPE : 2 STROKE CRANKCASE REED VALVE, WATER-COOLED, 123.5 CC.
BORE AND STROKE : 55.5 X 52.0 MM.
COMPRESSION RATIO : 7.0:1
CABURATOR : KEIHIN PE24
TRANSMISSION : 6 SPEED
CLUTCH SYSTEM : CLUTCH MANUAL
DIMENSIONS : 660 X 1,880 X 960 MM.
WHEEL BASE : 1,260 MM.
REAR SUSPENSION : MONOSHOCK
FRONT BRAKE : SINGLE DISC WITH TWIN-PISTON CALIPER
REAR BRAKE : SINGLE DISC WITH TWIN-PISTON CALIPER
FRONT TIRE : 70/90-17
REAR TIRE : 80/90-17
FUEL CAPACITY : 4.5 L.
AUTOLUBE CAPACITY : 1.2 L.
BATTERY (ELECTRIC START) : MF 12V.-3.5Ah

HONDA SUPER CUB

image:

otal length : 1,800 mm (71 in)
Total width : 660 mm (26 in)
Total height : 1,010 mm (40 in)
Wheelbase : 1,175 mm (46.3 in)
Dry Weight : 75 kg (170 lb)
Engine type : AA01E air-cooled four-stroke SOHC single-cylinder
Displacement : 49 cc (3.0 cu in)
Compression ratio : 10.0:1
Bore x Stroke : 39.0 × 41.4 mm (1.54 × 1.63 in)
Max Power output : 4 PS (3.9 hp) @ 7,000 rpm
Max Torque : 4.7 N·m (3.5 ft·lbf) @ 4,500 rpm
Max speed : 80 km/h (50 mph)
Carburetor type : PB3L; Honda PGM-FI (Japanese market only)
Lubrication : Forced pressure wet sump combined use system
Fuel tank capacity : 4 L (0.88 imp gal; 1.1 US gal)
Fuel Consumption : 0.6849 L/100 km (412.4 mpg-imp; 343.4 mpg-US)
(30 km/h fixed area travelling test value)
Clutch : Wet multi-plate, operated both by centrifugal action
and by gear-lever.
Transmission type : 3-speed rotary type (4-speed some models)
Gear ratio : 3.272, 1.764, 1.190
Reduction gear ratio : 4.058/3.076
Starter : Kick (electric start optional on some models)
Ignition : Capacitor Discharge Ignition (CDI Magneto) system
(earlier models Flywheel contact-breaker points)
Front Suspension : Leading link (also known as Bottom link)
Rear Suspension : Swinging fork (also known as Swing arm)
Tire sizes (F/R) : 2.25-17 33L / 2.50-17 38L
Front Brake : Drum, cable operated
Rear Brake : Drum, rod operated
Frame type : Low floor backbone pressed steel tube system

HONDA C70 (Pitong)



otal length : 1,800 mm (71 in)
Total width : 660 mm (26 in)
Total height : 1,010 mm (40 in)
Wheelbase : 1,175 mm (46.3 in)
Dry Weight : 75 kg (170 lb)
Engine type : AA01E air-cooled four-stroke SOHC single-cylinder
Displacement : 72 cc (4.4 cu in)
Compression ratio : 10.0:1
Bore x Stroke : 39.0 × 41.4 mm (1.54 × 1.63 in)
Max Power output : 4 PS (3.9 hp) @ 7,000 rpm
Max Torque : 4.7 N·m (3.5 ft·lbf) @ 4,500 rpm
Max speed : 80 km/h (50 mph)
Carburetor type : PB3L; Honda PGM-FI (Japanese market only)
Lubrication : Forced pressure wet sump combined use system
Fuel tank capacity : 4 L (0.88 imp gal; 1.1 US gal)
Fuel Consumption : 0.6849 L/100 km (412.4 mpg-imp; 343.4 mpg-US)
(30 km/h fixed area travelling test value)
Clutch : Wet multi-plate, operated both by centrifugal action
and by gear-lever.
Transmission type : 3-speed rotary type (4-speed some models)
Gear ratio : 3.272, 1.764, 1.190
Reduction gear ratio : 4.058/3.076
Starter : Kick (electric start optional on some models)
Ignition : Capacitor Discharge Ignition (CDI Magneto) system
(earlier models Flywheel contact-breaker points)
Front Suspension : Leading link (also known as Bottom link)
Rear Suspension : Swinging fork (also known as Swing arm)
Tire sizes (F/R) : 2.25-17 33L / 2.50-17 38L
Front Brake : Drum, cable operated
Rear Brake : Drum, rod operated
Frame type : Low floor backbone pressed steel tube system

YAMAHA TWIN RX 125



engine type : 4 stroke, 125cc, single cylinder.
gear box : 5 speed
transmission type : 1-N-2-3-4-5
etc. : dual exhaust

RX-King kira ~ kira harga nya berapa med ..??

yang dibawah tahun 2005 sekitar dibawah 8jt an
kalo yang 2005 ke atas paling 8-14jt an

YAMAHA TIARA S 120



engine : 2stroke, 118cc
bore x stroke : 54,0 x 52,0.
power : 17ps @7500rpm
torque : 115kpm@7000rpm
carburetor : Mikuni VM22 S.S
transmisi : 6 SPEED,1,N,2,3,4,5,6
sparkplugs : C7HSA (NGK)
clutch system : Wet,manual clutch
start system : Kick start
fuel capacity : 6,5 litre
IGNITION : AC,CDI

HONDA CB 200 1975

image:

General information
Model: Honda CB 200
Year: 1975
Category: Classic

Engine and transmission

Displacement: 198.00 ccm (12.08 cubic inches)
Engine type: Twin
Stroke: 4
Power: 17.00 HP (12.4 kW) @ 9000 RPM
Compression: 9.0:1
Bore x stroke: 55.5 x 41.0 mm (2.2 x 1.6 inches)
Valves per cylinder: 2
Fuel control: OHC
Cooling system: Air
Gearbox: 5-speed
Transmission type
final drive: Chain

Physical measures

Weight incl. oil, gas, etc: 142.0 kg (313.1 pounds)
Chassis and dimensions
Front tyre dimensions: 2.75-18
Rear tyre dimensions: 3.00-18
Front brakes: Expanding brake
Rear brakes: Expanding brake

Speed and acceleration
Top speed: 124.0 km/h (77.1 mph)
Other specifications
Fuel capacity: 11.00 litres (2.91 gallons)

BSA M20 1937

image:

Manufacturer United Kingdom Birmingham Small Arms Company
Production 1937–1955
Engine 469cc single cylinder side valve 4 stroke
Power 13bhp @4,200 rpm
Transmission 4 Speed / chain
Fuel capacity 3 gallons

HONDA PHANTOM 2001

image:

Engine Type: 4-stroke Single Cylinder, air-cooled, 2 valve SOHC
Displacement: 196.9cc
Bore x Stroke 63.5mm x 62.2mm
Compression Ratio: 9.0:1
Ignition System: CDI
Redline: Unknown - early TA200s (Custom 3? Short handlebar version) up to 2004 have NO rev limiter
6 speed gearbox (Conventional motorcycle 1N23456)
Clutch System: Wet Multiplate Clutch
Drivetrain: Chain (520)
Sprockets (Front / Rear tooth count): 13 / 39[2] or 41 (standard) [3]
Dimensions (WxLxH): 775 x 2256 x 1085 mm
Seat Height: 699mm
Wheelbase: 1505mm
Dry Weight: 140 kg
Fuel Tank Capacity (Main / Reserve): 9.68 litres / 2 litres
Suspension System: Front - Telescopic, Rear, Double Shock
Brake System: Front / Rear Disc Brakes (Dual Piston Calipers)
Tyre Size: Front - 90/90 - 17M / C49P (Tubeless) ; Rear - 130/90 15M / C66P (Tubeless), available from Metzeler (Lasertec), Pirelli (City Demon), Bridgestone (Exedra), IRC (from Thailand) and Shinko (with white-walled option)
Battery: Maintenance-Free 12V - 3.5Ah
Max. Power Output: 12.3 kW / 16.48 hp @ 8000 rpm
Max. Torque: 16.2 nm / 11.95 lb-ft @6500 rpm

kok kagak ada Legenda med ?


numpang lewat
cangcimen cangcimen cangcimen ..

yang keluaran Honda itu bukan ?

iya med ( klonengan momod )

Astrea Legenda

image:

Panjang x Lebar x Tinggi : 1.854 x 667 x 1.043 mm
Jarak sumbu roda : 1.203 mm
Tinggi Sadel : 663 mm
Jarak terendah ke tanah : 130 mm
Berat kosong : 91.5 kg
Tipe rangka : Pola Tulang punggung
Tipe suspensi depan : Teleskopik
Tipe suspensi belakang : Lengan ayun dengan shock breaker ganda
Ukuran ban depan : 2.25 - 17 33L
Ukuran ban belakang : 2.25 - 17 33L
Rem depan : Sistem tromol
Rem belakang : Sistem tromol
Kapasitas tangki bahan bakar : 3.5 liter
Tipe mesin : 4 Stroke, Overhead Camshaft
Susunan silinder : Satu silinder, sudut 80 o dari vertikal
Diameter x langkah : 50 x 49.5 mm
Volume langkah : 97.1 cm3
Perbandingan kompresi : 9 : 1
Daya maksimum : 7.3 DK / 8.000 rpm
Kapasitas minyak pelumas mesin : 0.70 liter pada penggantian periodik
Kopeling : Kopeling ganda
Gigi transmisi : 4 kecepatan. bertautan tetap
Pola pengoperan gigi : N - 1 - 2 - 3 - 4, Sistem rotari
Starter : Pedal & elektrik starter
Aki : 12 V - 5 Ah
Busi : ND U 22 FS-U / NGK C7HSA
Sistem Pengapian : CDI
Jenis Rantai Mesin : Roller Chain
Penyetelan Rantai Mesin : Otomatis dengan sistim hidrolis
Alternator : 0.095 kW/5000 rpm
Konsumsi Bahan Bakar : 77 km/I pada kecepatan 50 km/jam

wah udah di apdet

RX King harga nya 8 jt an yahh ..??
hhhmm lumayan lahh ituu ..

HONDA GL 100


Displacement: 99.00 ccm (6.04 cubic inches)
Engine type: Single cylinder, four-stroke
Power: 11.50 HP (8.4 kW)) @ 10500 RPM
Top speed: 110.0 km/h (68.4 mph)
Compression: 9.5:1
Bore x stroke: 52.0 x 49.5 mm (2.0 x 1.9 inches)
Valves per cylinder: 2
Fuel control: OHC
Cooling system: Air
Gearbox: 5-speed
Transmission type,
final drive: Chain
Fuel capacity: 10.00 litres (2.64 gallons)

HONDA GL MAX



Displacement: 124.00 cc
Engine type: Single cylinder, four-stroke
Top speed: 120.0 km/h (68.4 mph)
Compression: 9.5:1
Bore x stroke: 56.5 x 49.5 mm
Valves per cylinder: 2
Fuel control: OHC
Cooling system: Air
Gearbox: 5-speed
Transmission type,
final drive: Chain
Fuel capacity: 10.00 litres (2.64 gallons)

HONDA GL PRO


Displacement: 149.00 cc
Engine type: Single cylinder, four-stroke
Top speed: 140.0 km/h (68.4 mph)
Compression: 9.5:1
Bore x stroke: 61.0 x 49.5 mm
Valves per cylinder: 2
Fuel control: OHC
Cooling system: Air
Gearbox: 5-speed
Transmission type,
final drive: Chain
Fuel capacity: 10.00 litres (2.64 gallons)

HONDA TIGER 2000

image:

Panjang x Lebar x Tinggi 1.990 x 742 x 1.035 mm
Jarak Sumbu Roda 1.330 mm
Jarak Terendah ke Tanah 145 mm
Berat Kosong 123 kg
Tipe Rangka Pola Berlian
Ukuran Ban Depan 2,75 - 18 - 42L
Ukuran Ban Belakang 100/90 - 18 - 47P
Rem Depan Tipe cakram hidrolik, dengan piston ganda
Rem Belakang Tipe Tromol, digerakkan dengan tuas mekanis
Suspensi Depan Teleskopik
Suspensi Belakang Lengan ayun dengan sok beker ganda, peredam dapat disetel
Kapasitas Tangki Bahan Bakar 13 Liter
Tipe Mesin 4 Langkah OHC, pendinginan udara
Diameter X Langkah 63,5 x 62,2 mm
Volume Silinder 196,9 cc
Perbandingan Kompresi 9,0 : 1
Daya Maksimum 17,4 PS / 8.500 RPM
Torsi Maksimum 1,62 kgf.m / 6.500 RPM
Kapasitas Pelumas 1 Liter
Kopling Manual, tipe basah dan pelat majemuk
Gigi Transmisi 6 kecepatan, bertautan tetap
Pola Pengoperasian Gigi 1-N-2-3-4-5-6
Starter Pedal dan elektrik
Aki 12 V - 7 Ah
Busi ND X 24 FS - U9 / NGK DP8 EA-9
Sistem Pengapian CDI-AC, Magneto

GL MAX
motor ane !!

ane pake GL 100
